Easy Setup in Minutes
Easy Assembly and Disassembly
The Purcy Chair sets up in under 2 minutes once familiar. Allow for 3-4 minutes for initial set up. Disassembly is equally fast, ensuring convenience and portability for any professional. Intuitive design means you’ll rarely need the included instructions.

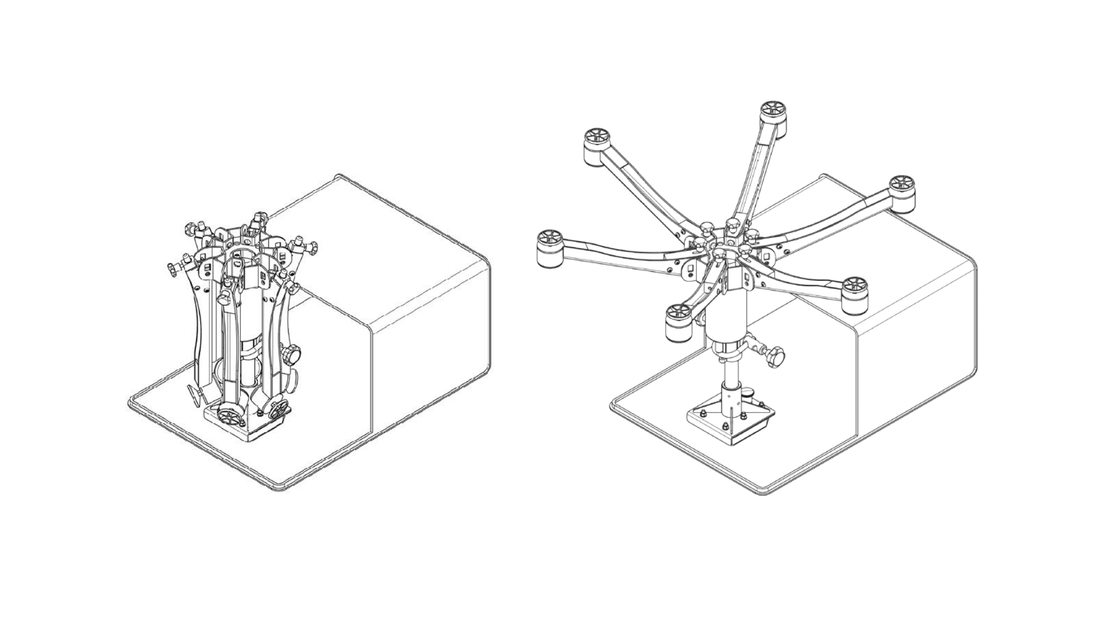

Step 1. Build the Base
Start with the small case.
- Open the case and lay the lid flat on the floor
- Place the base upside down on the lid (this protects the guide rails)
- Pull each leg out until it clicks into position (you’ll form a star shape)
- Flip the base upright onto the floor
You’re now ready to build up.

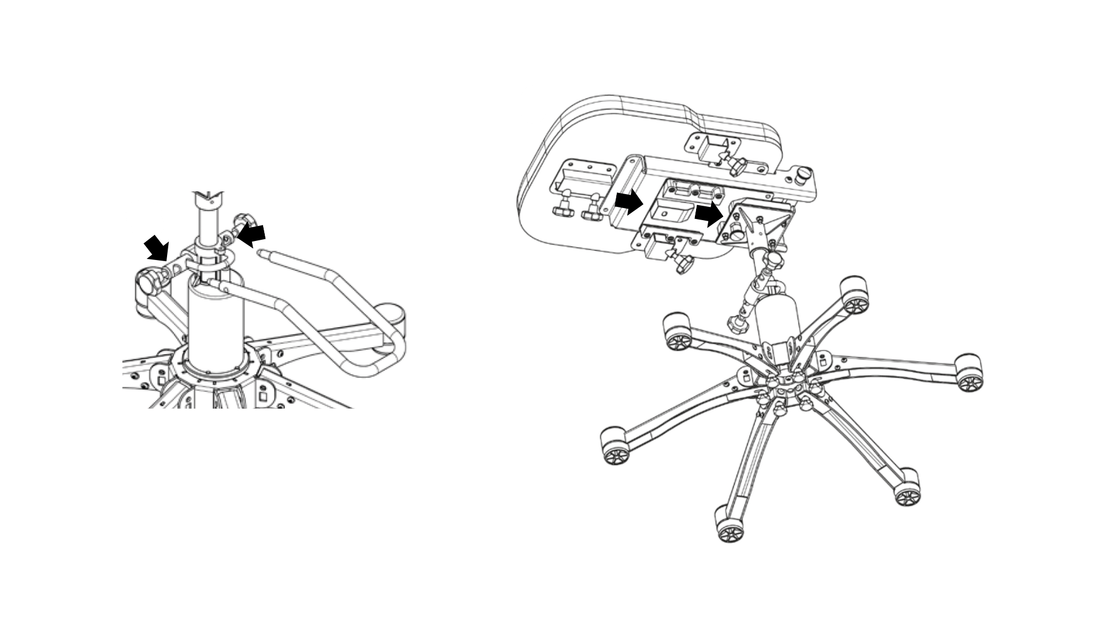

Step 2. Seat & Hydraulics
- Insert the foot pump bar into the hydraulic unit
- Slide the seat onto the guide rails until it clicks into place
At this stage, it should look like a stool.

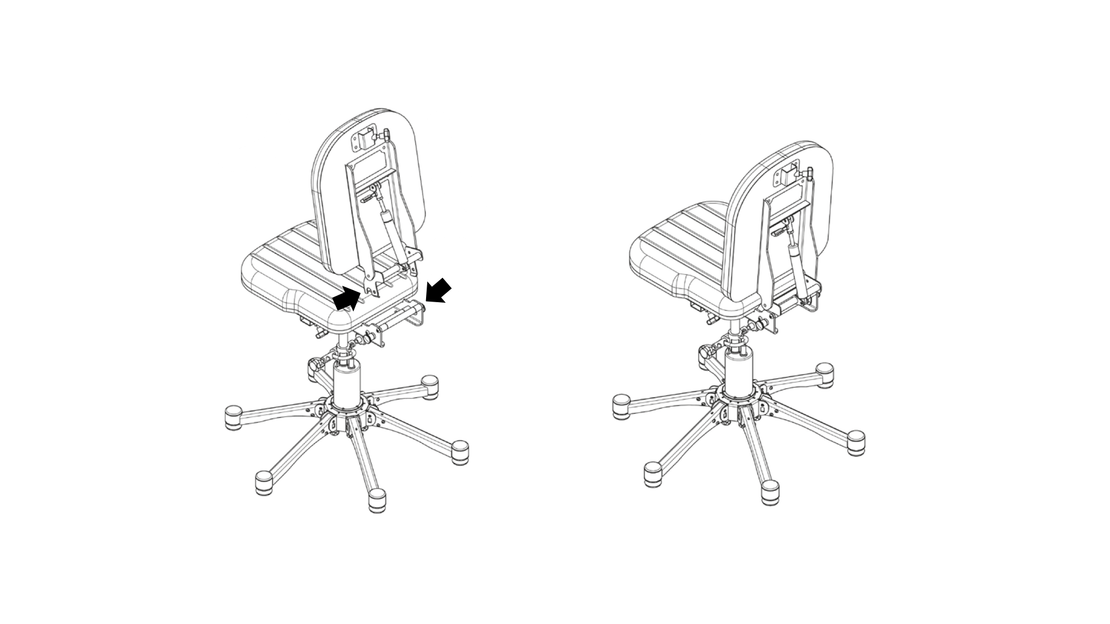

Step 3. Backrest
- Hook the backrest onto the rear bar
- Push back until both sides click and lock
Always check both pins are fully engaged.

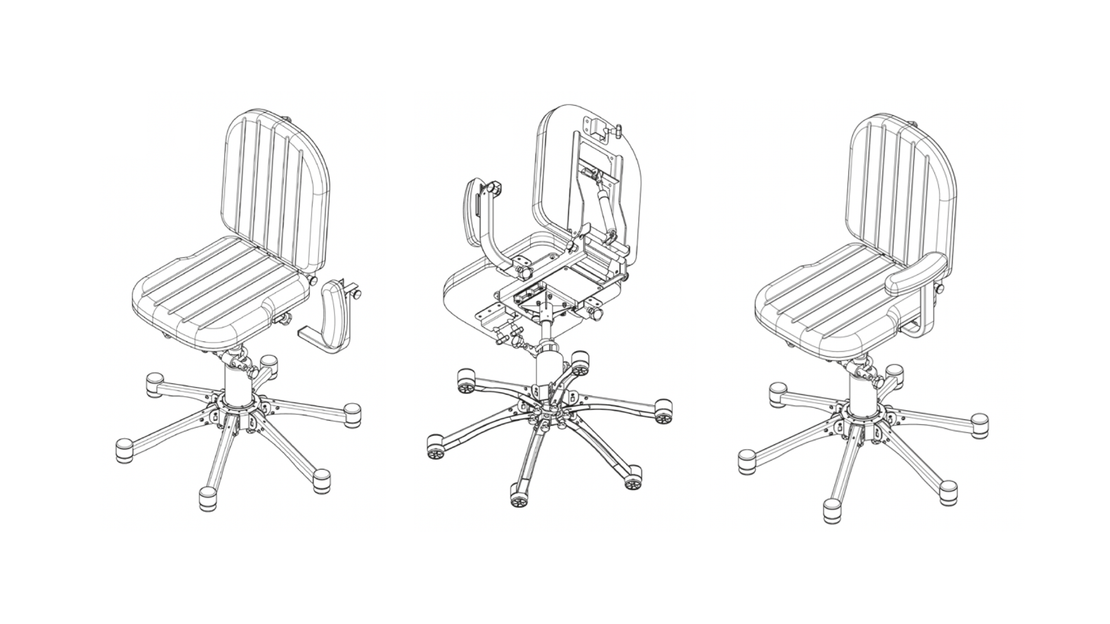

Step 4. Armrests
- Slide armrests into position under the seat
- Tighten the thumb screws
- Lift pads up to 90° until they click flat

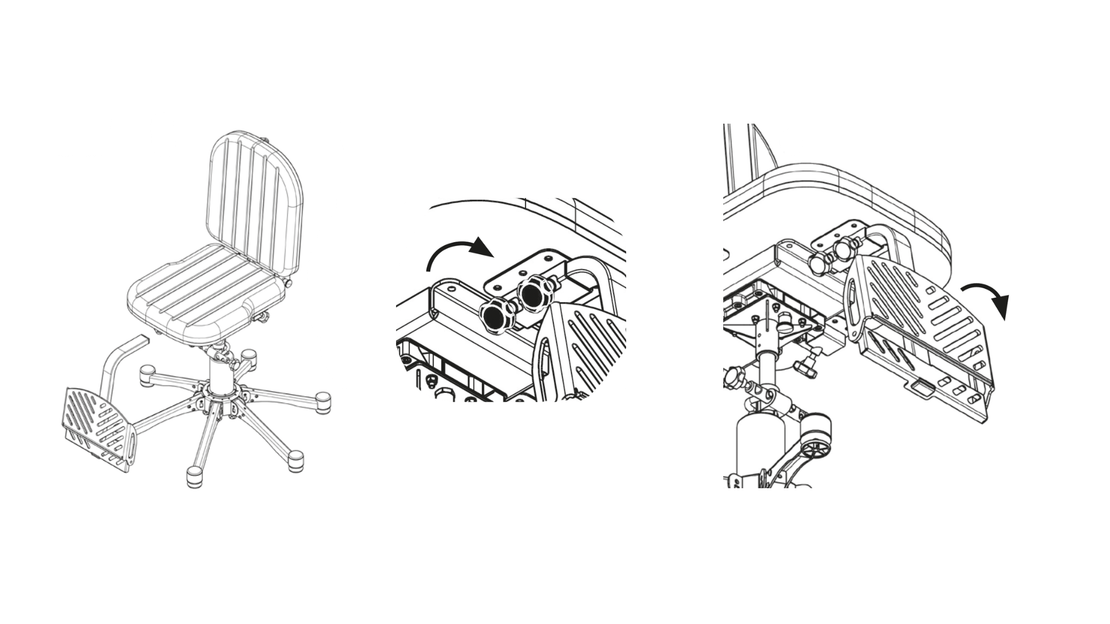

Step 5. Footrest & Headrest
- Insert the footrest into the central mount
- Tighten both thumb screws
- Unfold the footplate
Then:
- Slide the headrest into the backrest
- Adjust height and tighten
